Swing Arm Fire Hose Reel Complete 36m Hose
Original price was: $450.00.$295.00Current price is: $295.00.
Our Swing Arm Fire Hose Reel Complete 36m Hose is suited to almost any application. Having a swing arm makes it ideal for use when mounted in cupboards or cabinets. It is built with heavy duty parts and is easy to use. This 36m Fire Hose Reel come with all parts required, including 25mm Ball Valve, Nozzle, Locking Device, Hose Guide, Wall Bracket and 12 month warranty.
- Easy to operate, Swivel Arm 36m Fire Hose Reel.
- Lever operated ball valve device to ensure the maximum flow of water is available to the hose.
- Solid brass jet and spray twist-action nozzle.
- Galvanised steel internal waterway.
- Hose Reel comes complete with Isolation Valve (including nozzle retainer), M/F Union Assembly, Hose Guide Arm and Wall Mounting Bracket.
- Approved to AS/NZS 1221.
- Reel Plate Diameter 550mm.
Description
Our Swing Arm Fire Hose Reel Complete 36m Hose is suited to almost any application. Having a swing arm makes it ideal for use when mounted in cupboards or cabinets. It is built with heavy duty parts and is easy to use. This 36m Fire Hose Reel come with all parts required, including 25mm Ball Valve, Nozzle, Locking Device, Hose Guide, Wall Bracket and 12 month warranty.
Delivery cost
Calculated at the Cart page or at Checkout

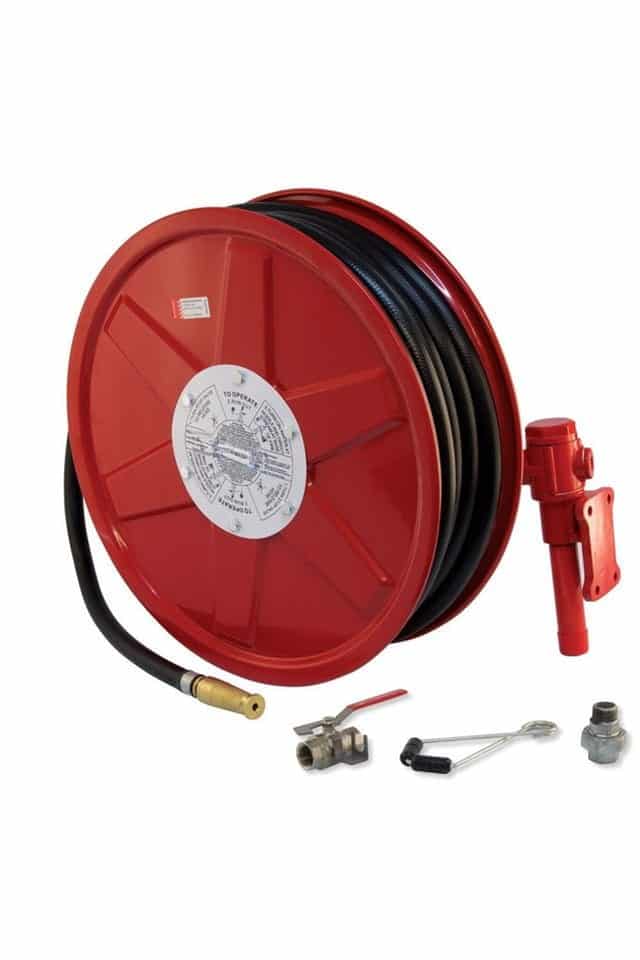

Includes:
- Fire Hose Reel
- Fire Hose 36m x 19mm diameter
- Inlet pipe and connection fitting
- Ball Valve including nozzle and locking device
- Fire Hose Guide
- Mounting Bracket
Features:
- 12 month warranty
- Designed to be easy to operate and maintain.
- A unique ball valve shut off device, ensuring the maximum flow of water is available to the hose with a single movement of the lever.
- A solid brass nozzle for the fire hose.
- Easy installation using our simple wall mounting bracket
Our Swing Arm Fire Hose Reel Complete 36m Hose provides a readily accessible and controlled supply of water to combat Class A fires. This complete Fire Hose Reel is made to provide a high level of fire protection. This Fire Hose Reel comes with an extended hose length of 36 metres. Our 36m x 19mm diameter Fire Hoses are designed to deliver a large volume of water over a greater distance.This Fire Hose Reel comes with a 36m long fire hose that has a control nozzle attached to the end of the hose. This enables the operator to easily control the direction and flow of water to the fire.
Australian standards
This Swing Arm Fire Hose Reel Complete 36m Hose has been designed and manufactured according to AS/NZ1221:1997.
Warranty
A warranty of twelve (12) months from the date of purchase applies to this Swing Arm Fire Hose Reel Complete 36m Hose when installed to Australian standards AS2441:2005 and serviced and maintained in accordance to AS1851:2005.
Accessories available:
- Hose Reel Stands
- Hose Reel Covers
- Replacement Parts
- Cabinets
Technical information:
| APPROVALS | AS 1221 |
| HOSE LENGTH & INTERNAL DIAMETER |
36 m X 19 mm |
| HOSE CONSTRUCTION | Ribbed PVC |
| INTERNAL WATERWAY | Galvanised Steel |
| SUPPORT ASSEMBLY | Zinc plated Steel |
| INLET PIPE & UNION | Galvanised Steel |
| ISOLATION VALVE | Zinc coated Brass |
| HOSE GUIDE ARM | Zinc plated |
| NOZZLE | Jet and Spray twist action brass nozzle |
| WALL MOUNTING BRACKET |
Steel, Red Powder Coat |
| SHIPPING DIMENSIONS (H W D) |
600 mm X 600 mm X 260 mm |
| OVERALL MASS | 22 kg |
| SUPPLIED WITH | Isolation Valve with nozzle retainer, Male/Female Union Assembly, Hose Guide Arm and Wall Mounting Bracket |
Fire Extinguisher Shop is the number one provider of high-quality fire equipment and fire extinguishers at the lowest prices.
Additional information
| Weight | 25.00 kg |
|---|
